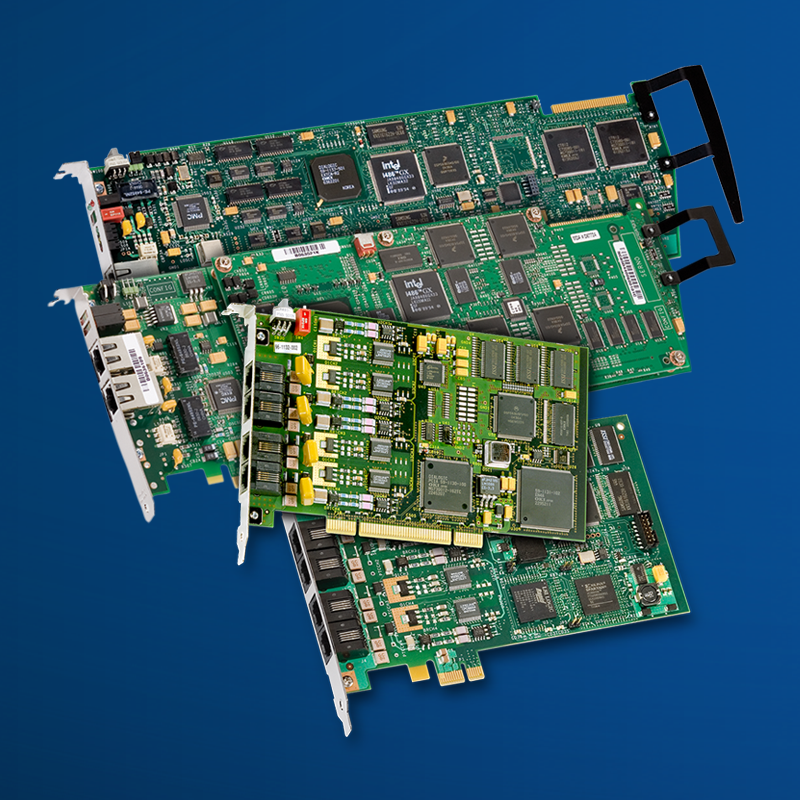

Dialogic media processing boards provide solutions that range from 4-port analog interface boards to quadspan T1/E1 media and network interface boards. These products support a full suite of media processing features, including voice play and record, advanced conferencing, high-speed fax, and speech integration. Products listed below are grouped by media capability and APIs supported.
Voice/FAX Board Switching Board E1/T1 Network Board Brookout FAX Board
Conferencing + Speech + Voice Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface
Diva V-PRI/T1-24 PCI
PCIe		 N/A 24 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1
Diva V-PRI/E1-30 PCI
PCIe		 N/A 30 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 E-1
Diva V-1PRI/T1/E1-30 PCIe N/A 30 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1/E-1
Diva V-2PRI/T1-48 PCI
PCIe		 N/A 48 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 2 T-1
Diva V-2PRI/E1-60 PCI
PCIe		 N/A 60 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 2 E-1
Diva V-4PRI/T1-96 PCI
PCIe		 N/A 96 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 T-1
Diva V-4PRI/E1-120 PCI
PCIe		 N/A 120 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 E-1

Conferencing + Speech + Voice + Fax Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface

DMV300BTEPEQ

PCIe

CT Bus
H.100

30

Linux
Windows

1 T-1/E-1

DMV3600BP

PCI

CT Bus
H.100

360

Linux
Windows

N/A

DMV4800BC

cPCI

CT Bus
H.110

480

Linux
Windows

N/A
DMV600BTEP

PCI

CT Bus
H.100

60

Linux
Windows

2 T-1/E-1
DMV600BTEC

cPCI

CT Bus
H.110

60

Linux
Windows

2 T-1/E-1
DMV600BTEPEQ

PCIe

CT Bus
H.100

60

Linux
Windows

2 T-1/E-1
DMV1200BTEPEQ

PCIe

CT Bus
H.100

120

Linux
Windows

2 T-1/E-1
4 T-1/E-1
DMV1200BTEP

PCI

CT Bus
H.100

120

Linux
Windows

2 T-1/E-1
4 T-1/E-1
DMV1200BTEC

cPCI

CT Bus
H.110

120

Linux
Windows

2 T-1/E-1
4 T-1/E-1
Diva BRI-2 PCI
PCIe		 N/A 2 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 BRI
Diva 4BRI-8 PCI
PCIe		 N/A 8 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 BRI
Diva UM-BRI-2 PCI
PCIe		 N/A 2 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 BRI
Diva UM-4BRI-8 PCI
PCIe		 N/A 8 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 BRI
Diva UM-Analog-2 PCI
PCIe		 N/A 2 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 2 Analog
Diva UM-Analog-4 PCI
PCIe		 N/A 4 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 Analog
Diva UM-Analog-8 PCI
PCIe		 N/A 8 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 8 Analog
Diva UM-PRI/E1-30 PCI
PCIe		 N/A 30 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 E-1
Diva UM-PRI/T1-24 PCI
PCIe		 N/A 24 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1
Diva PRI/E1/T1-8 PCI N/A 8 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1/E-1
Diva PRI/T1-24 PCI
PCIe		 N/A 24 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1
Diva PRI/E1-30 PCI
PCIe		 N/A 30 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 E-1
Diva Analog-2 PCI
PCIe		 N/A 2 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 2 Analog
Diva Analog-4 PCI
PCIe		 N/A 4 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 Analog
Diva Analog-8 PCI
PCIe		 N/A 8 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 8 Analog

Conferencing + Speech + Voice + Fax + VoIP + Video Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface
CG 6060 PCI H.100 120 Linux
Solaris
Windows		 Ethernet
T1/E1
CG 6060C cPCI H.110 480 Linux
Solaris
Windows		 Ethernet
T1/E1
CG 6565 PCI H.100 240 Linux
Solaris
Windows		 Ethernet
T1/E1
CG 6565C cPCI H.110 480 Linux
Solaris
Windows		 Ethernet
T1/E1
CG 6565E PCIe H.100 240 Linux
Solaris
Windows		 Ethernet
T1/E1

Voice Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface
DM/V480-4T1 cPCI
PCI		 CT Bus
H.100/H.110		 12
48		 Linux
Windows		 4 T-1
DM/V600-4E1 cPCI
PCI		 CT Bus
H.100/H.110		 60 Linux
Windows		 4 E-1
DM/V960-4T1 cPCI
PCI		 CT Bus
H.100/H.110		 96 Linux
Windows		 4 T-1
DM/V1200-4E1 cPCI
PCI		 CT Bus
H.100/H.110		 120 Linux
Windows		 4 E-1
Diva PRI/E1/T1-CTI PCI
PCIe		 N/A 30 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1/E-1
Diva BRI-CTI PCI PCI N/A 2 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 BRI

Voice with Fax Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface
D/300JCT-E1 PCI
PCIe		 (H.100) 30 Linux
Windows		 1 E-1
D/4PCIUF PCI
PCIe		 N/A 4 Linux
Windows		 4 Analog

Voice with Fax + Speech Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface
D/41JCT-LS PCI
PCIe		 CT Bus
H.100		 4 Linux
Windows		 4 Analog
D/120JCT-LS PCI
PCIe		 CT Bus
H.100		 12 Linux
Windows		 12 Analog
D/160JCT PCI CT Bus
H.100		 16 Linux
Windows		 N/A
D/320JCT PCI CT Bus
H.100		 32 Linux
Windows		 N/A
D/240JCT-T1 PCI
PCIe		 CT Bus
H.100		 24 Linux
Windows		 1 T-1
D/480JCT-1T1 PCI
PCIe		 CT Bus
H.100		 24 Linux
Windows		 1 T-1
D/480JCT-2T1 PCI
PCIe		 CT Bus
H.100		 48 Linux
Windows		 2 T-1
D/600JCT-1E1 PCI
PCIe		 CT Bus
H.100		 30 Linux
Windows		 1 E-1
D/600JCT-2E1 PCI
PCIe		 CT Bus
H.100		 60 Linux
Windows		 2 E-1
DMV160LP PCI CT Bus
H.100		 16 Linux
Windows		 16 Analog
Diva V-1PRI/E1/T1-30 PCIe N/A 24
30		 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 1 T-1/E-1
Diva V-2PRI/T1-48 PCI
PCIe		 N/A 48 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 2 T-1/E-1
Diva V-2PRI/E1-60 PCI
PCIe		 N/A 48 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 2 T-1/E-1
Diva V-4PRI/T1-96 PCI
PCIe		 N/A 96 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 T-1/E-1
Diva V-4PRI/E1-120 PCI
PCIe		 N/A 120 Linux - all distributions
Windows Server 2003
Windows Server 2008
Windows Vista
Windows XP		 4 T-1/E-1
VFX/41JCT-LS PCI
PCIe		 CT Bus
H.100		 4 Linux
Windows		 4 Analog

Voice with Speech Boards

Product

Form Factor

Resource Bus

Ports

Operating System

Network Interface

D/4PCIU4S

PCI
PCIe

N/A

4

Linux
Windows

4 Analog
